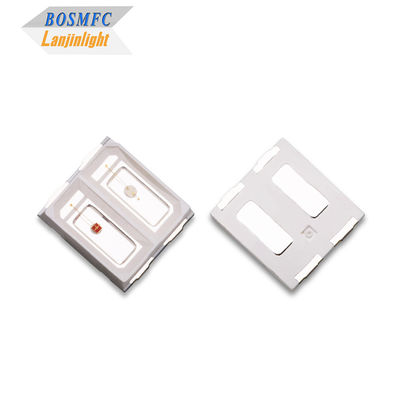

5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices.
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | BOSMFC |
| Certificering: | Rohs, Reach |
| Modelnummer: | GELEIDE 5050 SMD |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1000 pccs |
|---|---|
| Verpakking Details: | 1000 stuks per rol, spoel+antistatische zak+doos |
| Levertijd: | 5-15 dagen |
| Betalingscondities: | T/T, Western Union, PayPal |
| Levering vermogen: | 500KK/maand |
|
Gedetailleerde informatie |
|||
| Stroom: | 1 W | Kleur uitzenden: | infrarood geleid licht |
|---|---|---|---|
| Golflengte: | 630/460 nm | Vooruitstroom: | 150 mA |
| Voorwaartse spanning: | 1.8-2.4V/2.8-3.4V | Kijkhoek: | 120 ° |
| Maat: | 5.4*5.0*0.8mm | Levensduur: | 50.000 uur |
| Garantie: | 3 jaar | chipmerk: | San'an Chip / Epistar Chip |
| Pakket: | 1000 stcs/haspel | ||
Productomschrijving
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices.
This 5050 SMD LED is a dual-color component integrating high-performance red and blue chips, specifically engineered for professional and high-power LED beauty light panel therapy devices. It delivers targeted phototherapy, with red light (typically 630-660nm) promoting collagen production and skin rejuvenation, while blue light (typically 460-480nm) effectively targets acne-causing bacteria. The 5050 form factor ensures high luminous intensity and reliable performance for intensive skincare applications, making it an ideal core light source for clinical-grade and home-use facial treatment panels
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 625nm
465nm |
--- |
20 10 |
--- | LM | IF=150mA |
| Dominant wavelength | 625nm
465nm |
620
460 |
--- | 630
470 |
nm | IF=150mA | |
| Forward voltage | VF | 625nm
465nm |
1.8
3.0 |
--- | 2.4
3.4 |
V | IF=150mA |
| Viewing angle | --- | 120 | --- | deg | IF=150mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=150mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
1. Acne Treatment: Blue light targets and eliminates acne-causing bacteria.
2. Anti-Aging: Red light stimulates collagen to reduce wrinkles and fine lines.
3. Skin Rejuvenation: Improves overall skin tone, texture, and radiance.
4. Wound Healing: Accelerates tissue repair and reduces inflammation.
5. Muscle Recovery: Soothes muscle soreness and enhances recovery post-exercise
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
